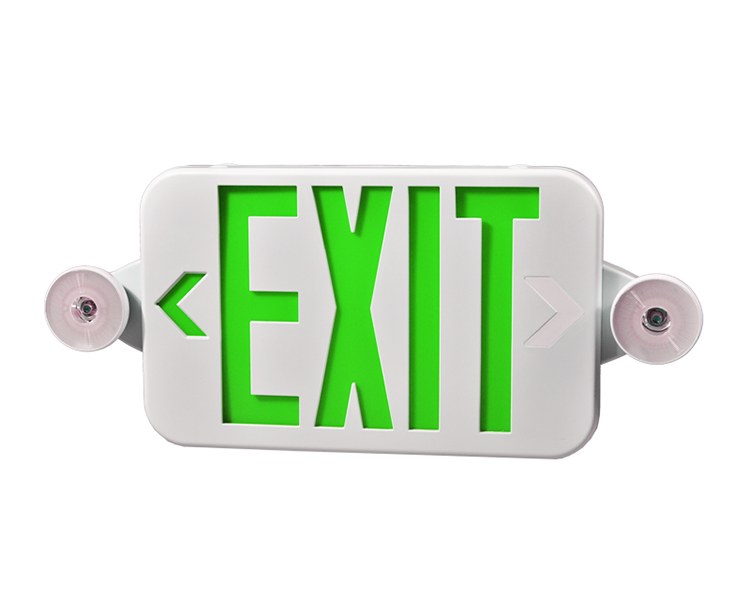

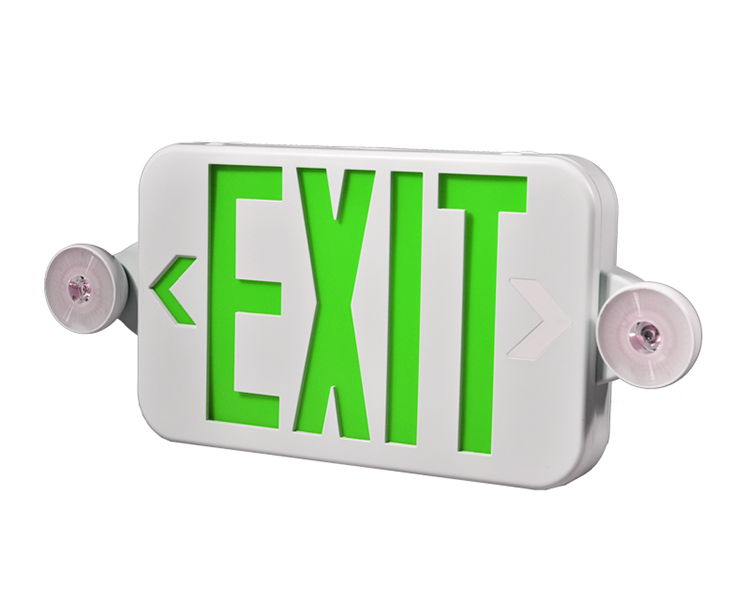

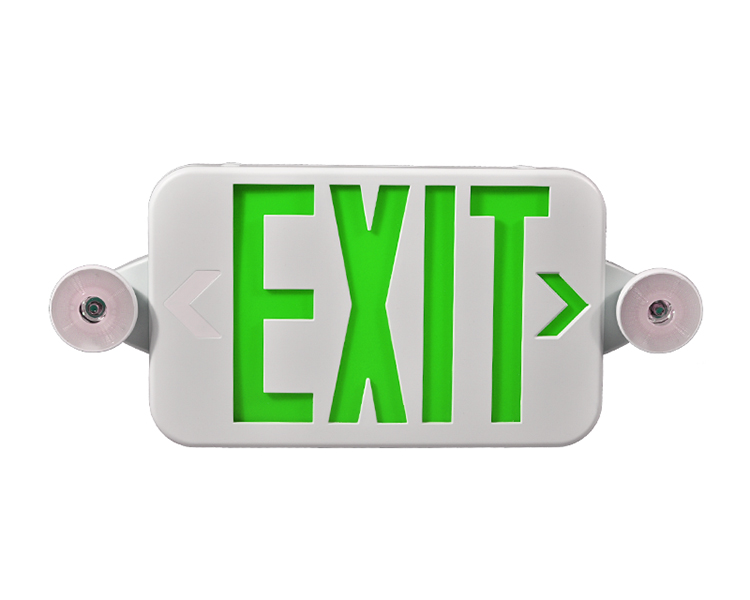

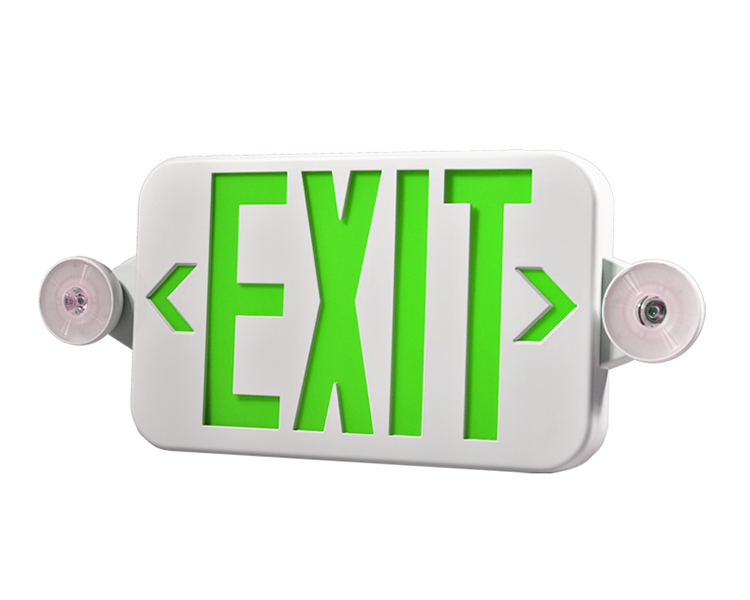

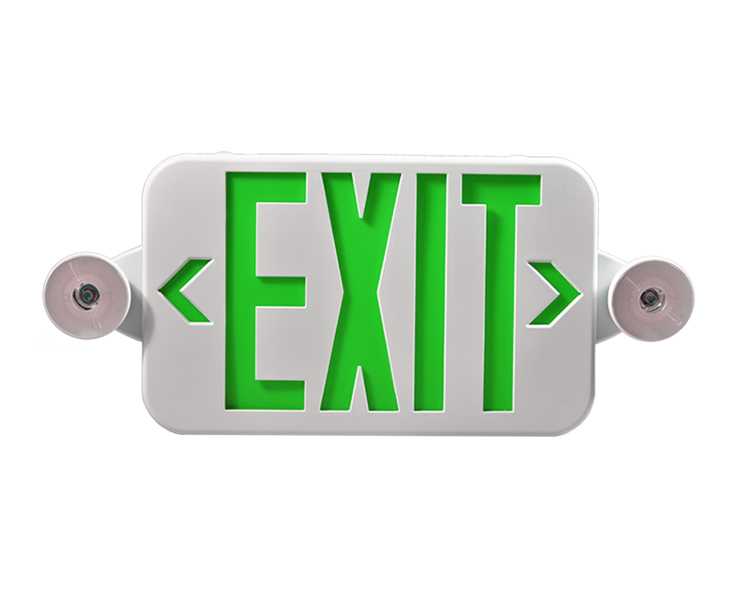

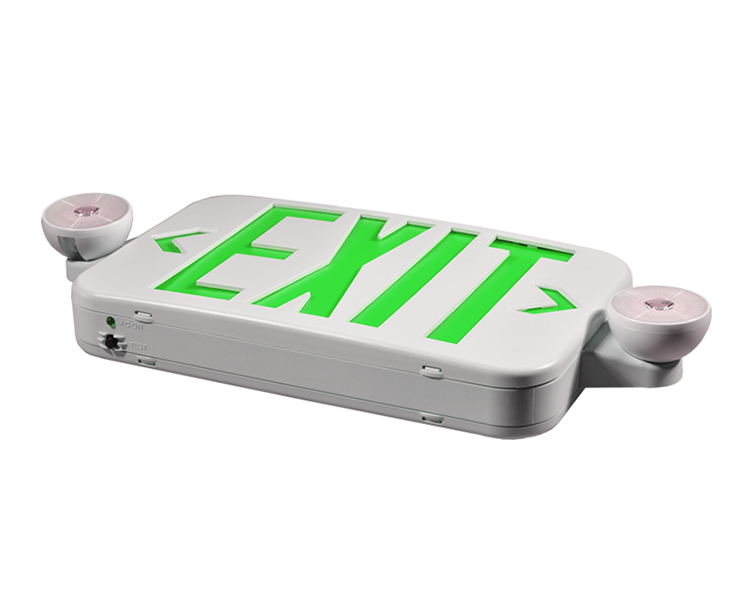

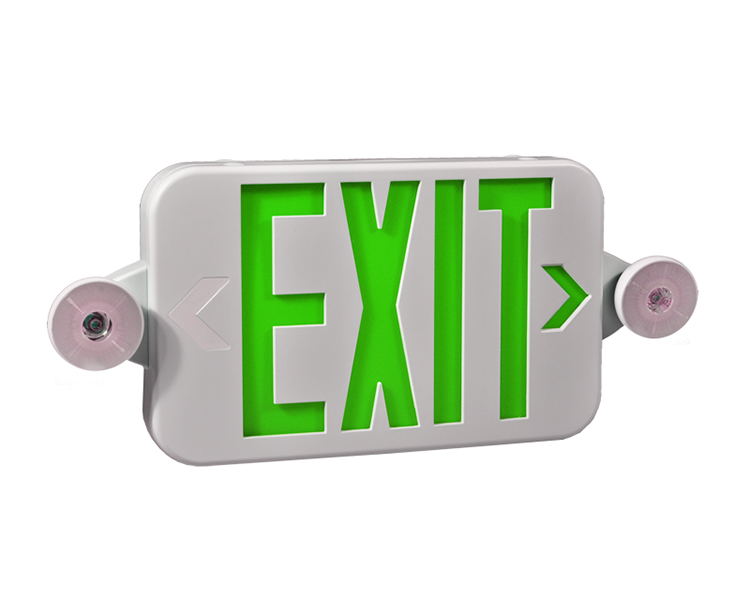

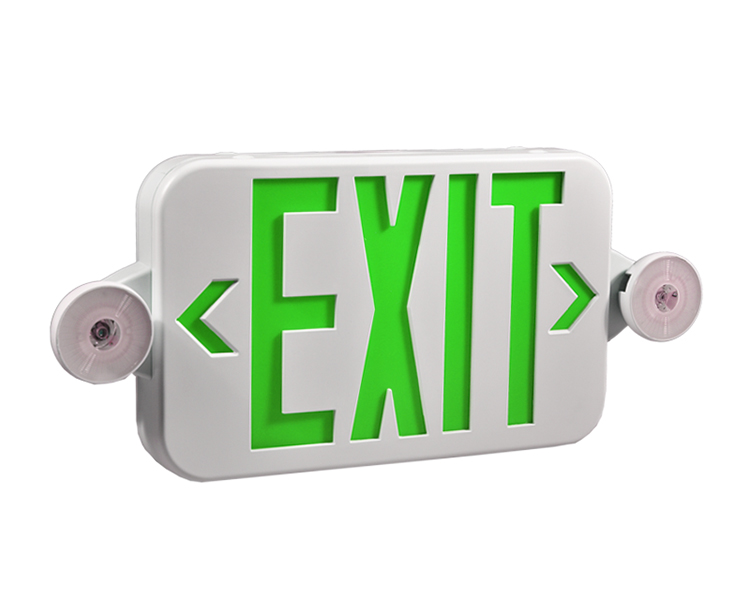

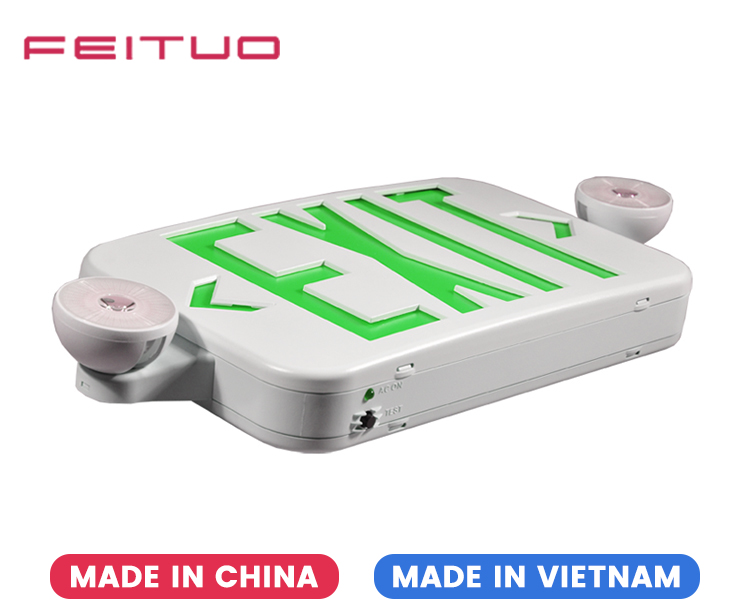

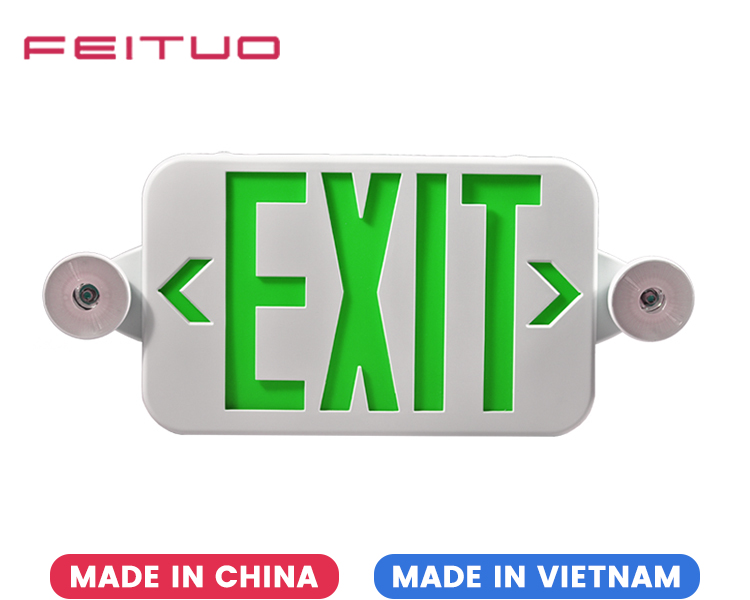

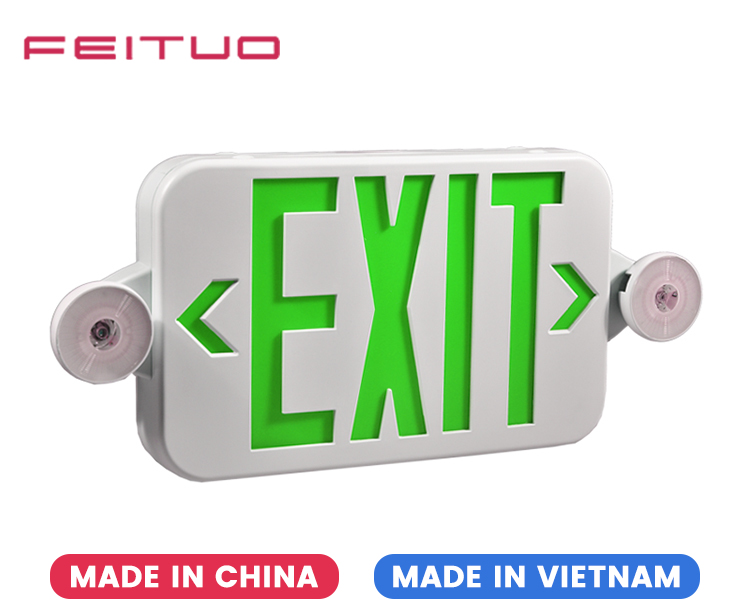

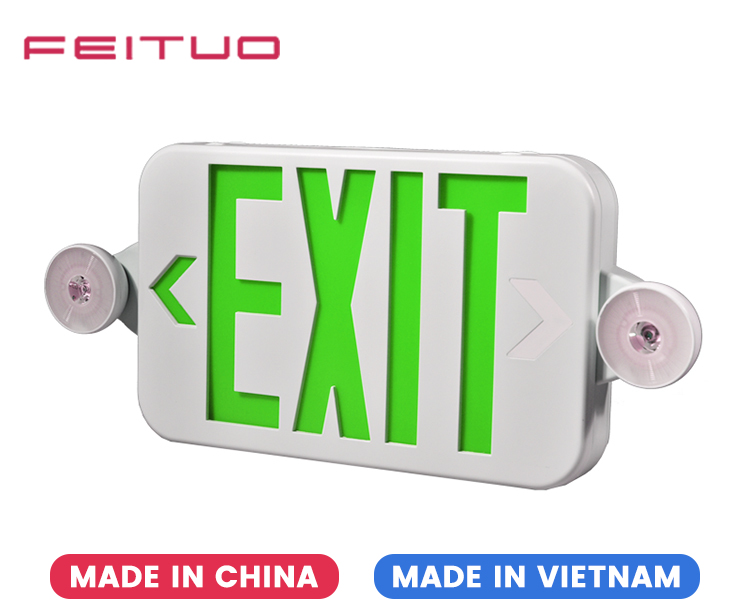

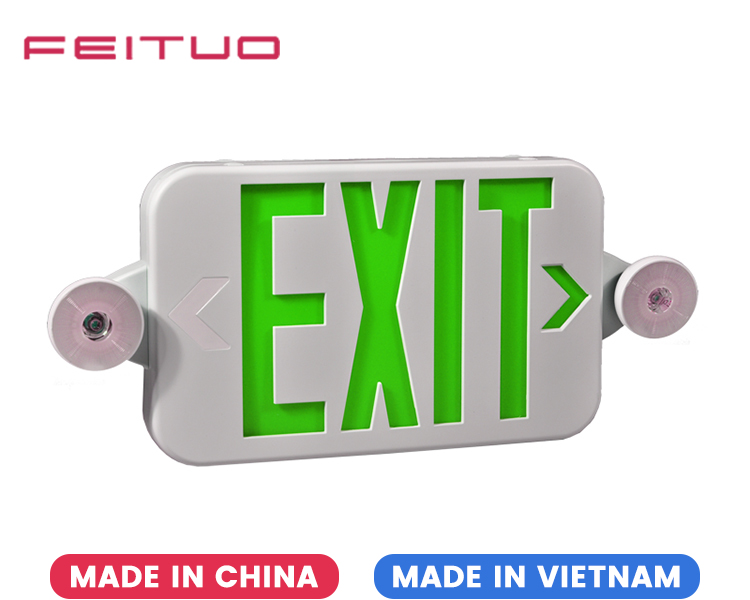

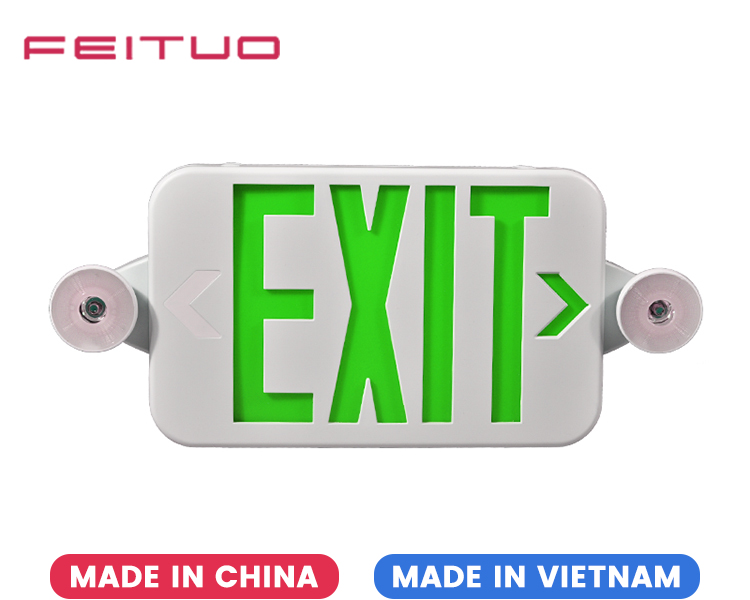

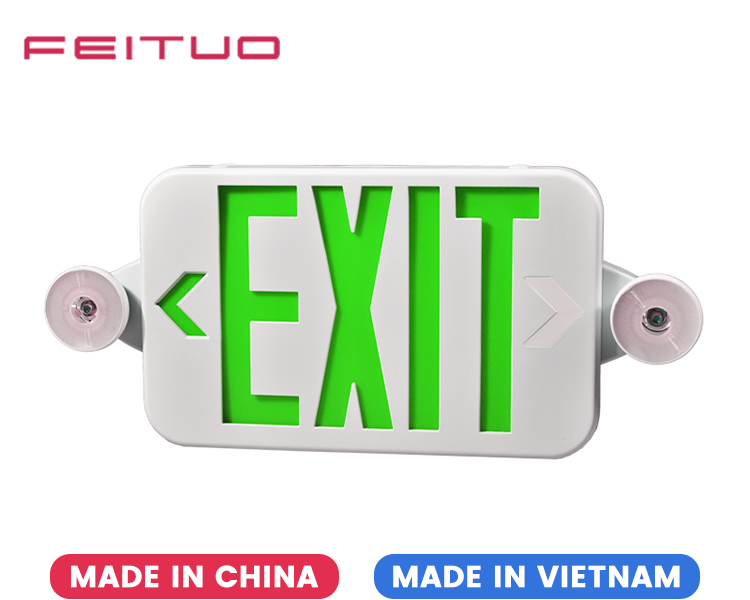

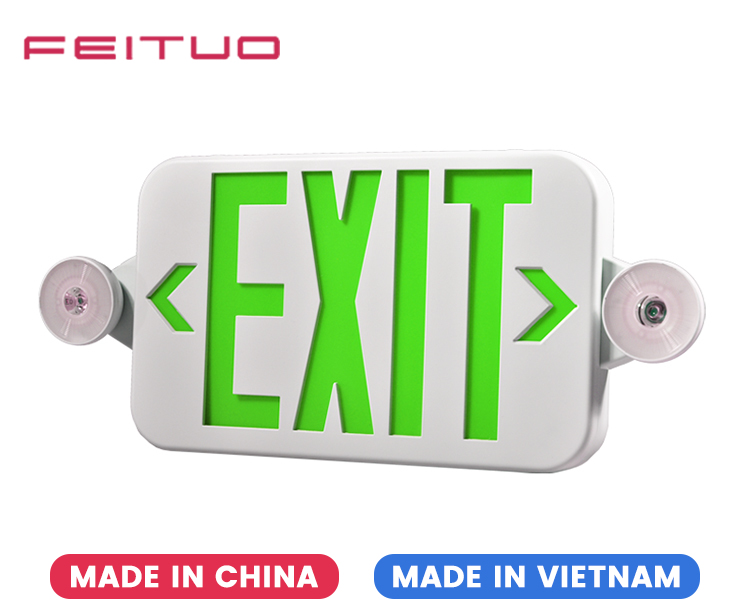

JLECE2GW-New Compact Green Exit Sign

Features:
New Compact Green EXIT Sign/Emergency COMBO
*Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.
*Innovative, easy installation in minutes
*Letters 6" height with 3/4" stroke. Optional GREEN letters.
*Single or double face(Universal).
*Removable directional indicators
*Universal J-box mounting pattern
*120V-277VAC Universal voltage operation
*2X1W SMT LED lamp heads for emergency mode
*Built-in 3.6V1000mAh Nickel cadmium battery for minimum 90 minutes emergency operation.
*Maximum 24 hours for full recharge time

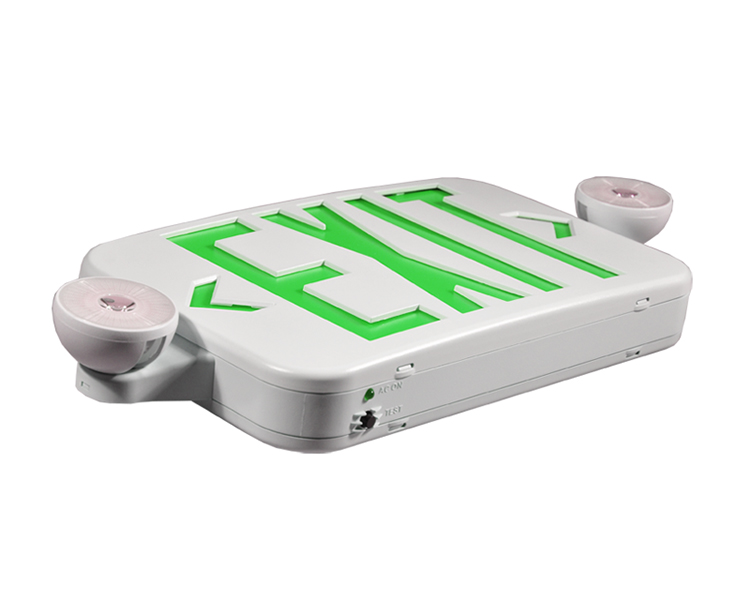

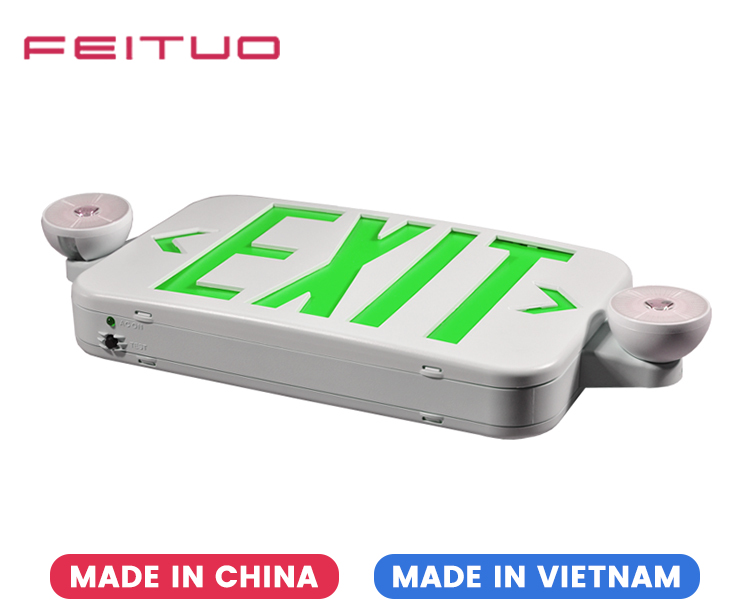

*Test switch and charge indicator
*UL and cULus listed
*0° to 40°C indoor damp location listed

Usage ：For hospital, hotel, mall, outdoor, parking lot, restaurant, office Building, station, supermarket

Certification ：UL

PDF download
Contact us

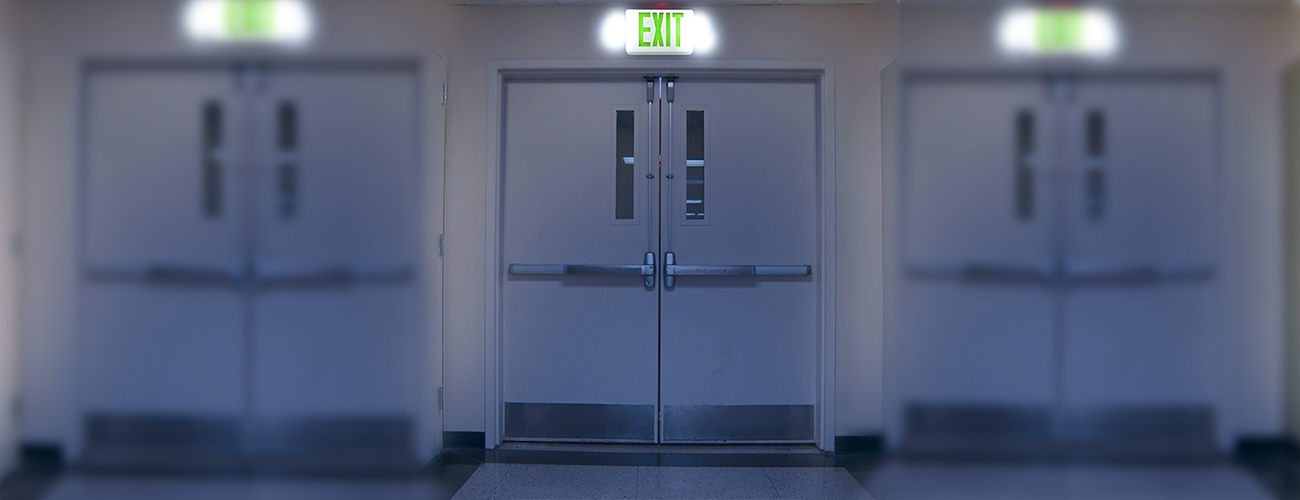

Scene Application

Description

JLECE2GW-New Compact Green Exit Sign is an emergency exit sign combination that integrates emergency lighting and indication functions, designed for safe evacuation needs of various buildings. Its compact structure is easy to install in areas with limited space and is suitable for emergency evacuation places such as corridors, aisles, stairwells, etc. This model supports single-sided or double-sided configurations, and is equipped with removable left-right arrows to flexibly respond to the needs of different installation directions.
The equipment is equipped with a green LED light source, which provides clear outlet indication in case of emergency, and uses a durable nickel-cadmium battery as a backup power supply. It can automatically switch to emergency mode during power outage, and continuously power supply is for at least 90 minutes. The product supports 120-277VAC universal voltage, strong compatibility, and meets installation specifications in different regions. The panel and lamp body design focuses on structural stability and convenient maintenance, and is suitable for commercial buildings, hospitals, schools, shopping centers, warehouses and other public places. The JLECE2GW Emergency Exit Mark combination is UL certified and meets UL 924, NFPA 101 and OSHA requirements to meet safety indication requirements in a variety of environments.

Technical Details

Part Number JLECE2GW
Item Weight 2.2 lbs   /   1 kgs
Package Dimensions 16.81 x 9.6 x 2.36 inches
42.7 x 19.3 x 6 cm
Color ‎White  /   Green EXIT Letter
Material Thermoplastic
Voltage 120 - 277 Volts
Battery 3.6V 1000mAh Ni-Cad
Wattage 2.3 watts
Type of Bulb ‎LED
Mounting Type ‎Wall Mounted
Certifications UL listed
Weather Ratings Listed for damp location
Carton Weight 13.67 lbs   /   6.2 kgs
Carton Size 15.75 x 17.32 x 7.68 inches / 6pcs
40 x 44 x 19.5 cm / 6pcs

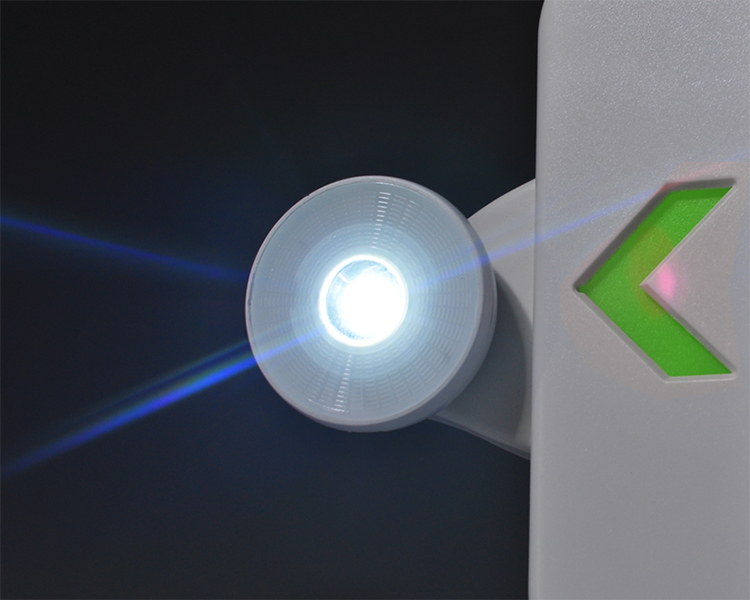

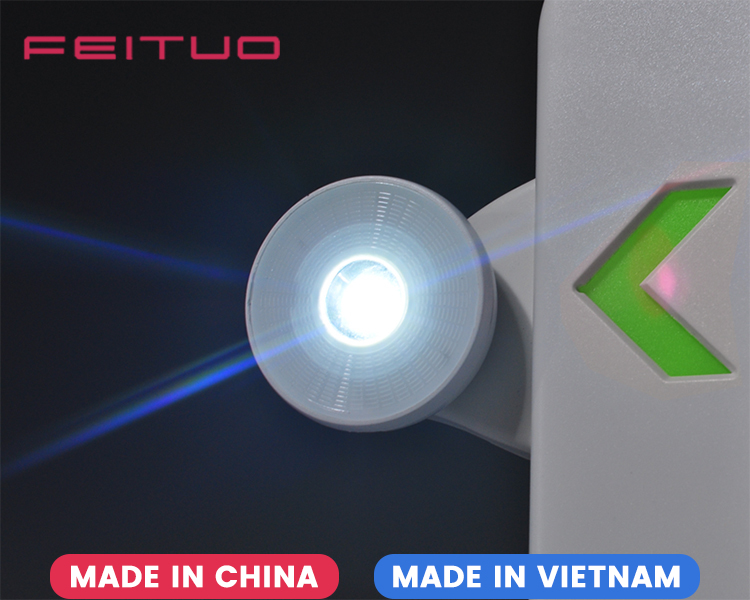

*ILLUMINATION - Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome plated reflectors and polycarbonate lenses for optimal light distribution. The LED Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
*MULTI-ANGLE LIGHTING - Each side of the emergency light has bright adjustable floodlights on the sign for maximum visibility. 360° ratation, the flexibility of the light direction allows you to point the lights at almost a 90 degree angle.
*EMERGENCY POWER BATTERY BACKUP- Emergency light built-in 3.6V 1000mAh Ni-Cad backup battery, upon failure of the normal utility power, an internal solid state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.
*EASY INSTALLATION IN MINUTES - Can be wall or ceiling mounted, universal J-box mounting pattern. Test switch and status indicator let you know the emergency lights has power and the battery is working.
*5 YEAR WARRANTY - Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

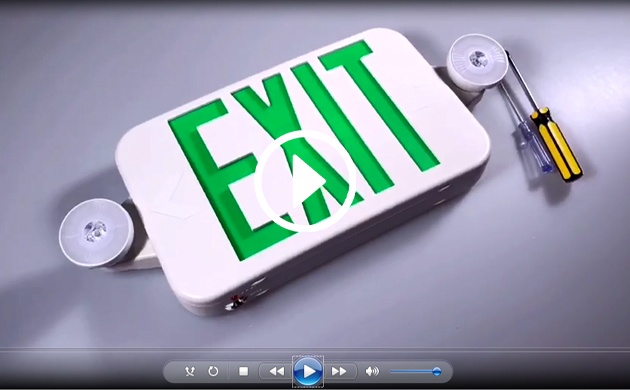

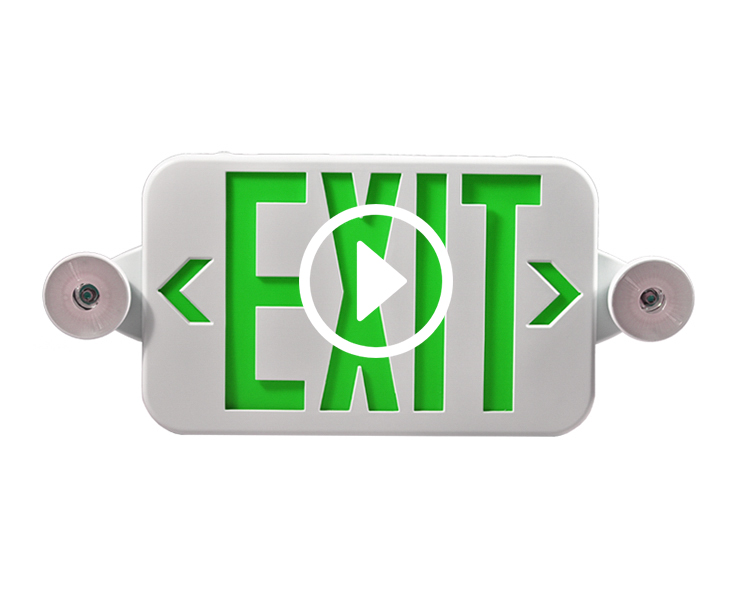

Installation video

  • 1280ba18a32711bfc2d1777b3f792704_1

Show details

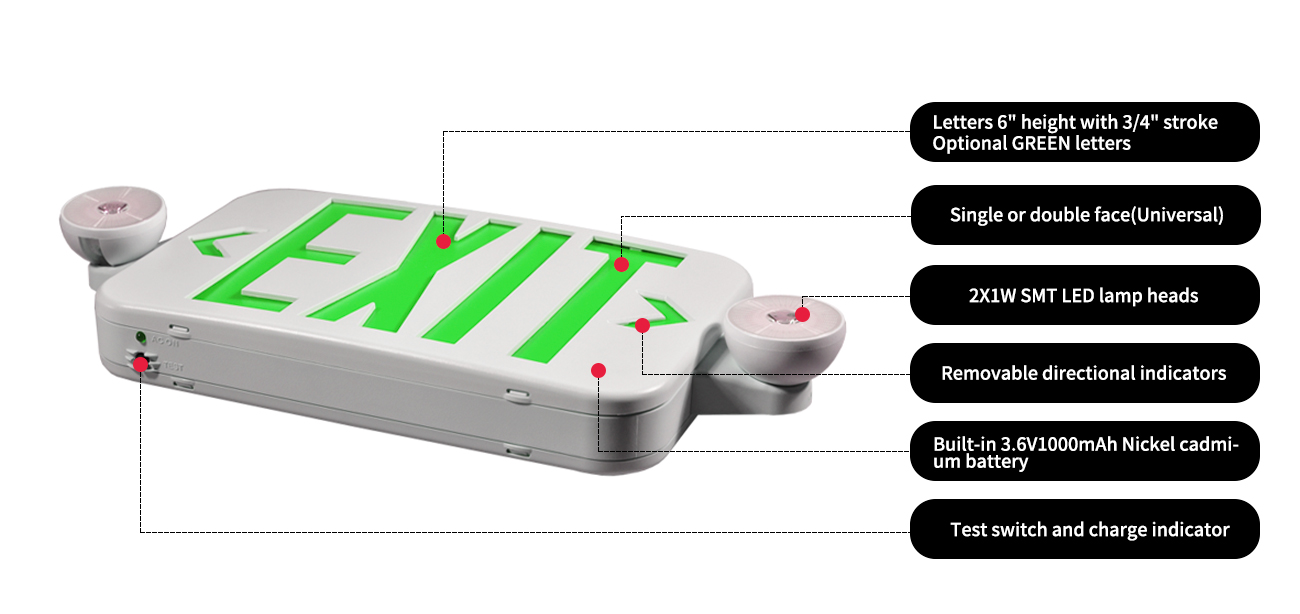

Letters 6' height with 3/4' stroke Optional GREEN letters Single or double face(Universal) 2X1W SMT LED lamp heads Removable directional indicators Built-in 3.6V1000mAh Nickel cadmium battery Test switch and charge indicator

Customized Solution

Need Design?
...No Problem!		 FEITUO Lighting has the ideal solution for custom emergency light. lf we do not have it already, our engineers and technicians will work with you to develop a new one. lf you have any needs for your new product or with to make further improvements, we are-here to offer our support.



At NINGBO FEITUO ELECTRIC APPLIANCE CO., LTD., we understand the importance of tailored solutions and exceptional service. That's why we proudly offer comprehensive OEM and ODM services, ensuring that our products seamlessly integrate into your brand and fulfill your specific specifications. Our product range includes, but is not limited to Emergency Lights, Emergency Exit Signs, Emergency Bulkheads, Emergency Twin Spotlights, Emergency Downlights,and Emergency Battery Backups.Whether you need a customized design, unique features, or branding elements, our dedicated team is here to bring your vision to life.

Applications

  • Hospital
  • Hotel
  • Mall
  • Outdoor
  • Parking lot
  • Restaurant
  • Office building
  • Station
  • Supermarket

Product comparison

PRICTURE
MODEL NO JLEC2RW JLEC2RWRC JLEC2GW JLEC2GWRC JLEC2BCW JLECD2RW JLECD2GW JLECB2RW JLECB2RWRC JLECB2GW JLECE2RW JLECE2RWRC JLECE2GW JLECE2GWRC JLECE2BCW JLECE2BCWRC
SIZE 409*111*202mm
16.1"*4.37"*7.95"		 409*111*202mm
16.1"*4.37"*7.95"		 409*111*202mm
16.1"*4.37"*7.95"		 430*46.7*193mm
16.93"*1.84"*7.6"		 330.8*58.8*190mm
11.84"*2.31"*7.48"		 330.8*58.8*190mm
11.84"*2.31"*7.48"		 418*52*184mm
16.46"*2.05"*7.24"		 418*52*184mm
16.46"*2.05"*7.24"		 418*52*184mm
16.46"*2.05"*7.24"
LETTER
SIZE		 6" 6" 6" 6" 6" 6" 6" 6" 6"
LETTER COLOR Red Green Bi-Color Red / Green Red Green Red Green Red Green Bi-Color Red / Green
RATED
VOLTAGE		 120/277V 120/277V 120/277V 120-277V 120/277V 120/277V 120-277V 120-277V 120-277V
INPUT
CURRENT		 0.07/0.05A 0.07/0.05A 0.031/0.016A 0.032A 0.03/0.013A 0.03/0.013A 0.036A 0.05A 0.036A 0.05A 0.032/0.017 0.047/0.028
INPUT WATT 4.2W 4.2W 3.5W 3.3W 3.5W 3.5W 2.3W 3.2W 2.3W 3.2W 2W 2.8W
LED TYPE (12)Red LEDs+2*12pcs 2835 SMT LED lamp (8)Green LEDs+2*12pcs 2835 SMT LED lamp (9) Red LEDs/(6) Green LEDs +2*8pcs lamp heads (10)Red LEDs+2*8pcs lamp heads (8)Green LEDs+2*8pcs lamp heads (6)Red LEDs+ 2*1W SMT LED lamp heads (6)Green LEDs+ 2*1W SMT LED lamp heads (8)Red LEDs + 2*1W lamp heads (8)Red LEDs + 2*1W lamp heads (6)Green LEDs + 2*1W lamp heads (6)Green LEDs + 2*1W lamp heads (6) Red LEDs for/(6) Green LEDs  + 2*1W lamp heads (6) Red LEDs for/(6) Green LEDs  + 2*1W lamp heads
REMOTE CAPABILITYR / 2W remote lamps / 2W remote lamps / / / / 2W remote lamps / / 2W remote lamps / 2W remote lamps / 2W remote lamps
BATTERY Ni-cd
9.6V 600mAh		 Ni-cd
9.6V 1000mAh		 Ni-cd
9.6V 600mAh		 Ni-cd
9.6V 1000mAh		 NI-MH
3.6V, 1200mAh		 Ni-MH
1.2V, 1000mAh		 Ni-cad
3.6V 1000mAh		 Ni-cad
3.6V 2000mAh		 Ni-cad
3.6V 1000mAh		 NI-MH
1.2V, 1000mAh		 NI-MH
1.2V, 2000mAh		 NI-MH
1.2V, 1000mAh		 NI-MH
1.2V, 2000mAh		 NI-MH
3.6V, 1000mAh		 NI-MH
3.6V, 2000mAh
OUTPUT Lumens ≥220lm ≥220lm ≥300lm ≥300lm ≥170lm ≥170lm ≥220lm ≥220lm ≥180lm
CHARGING TIME 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours
EMERGENCY RUN TIME 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins
INNER BOX SIZE 49*21*12cm 49*21*12cm 49*21*12cm 44.3*20.7*4.8cm 31*20.4*6cm 31*20.4*6cm 42.7*19.3*6cm 42.7*19.3*6cm 42.7*19.3*6cm
20GP 2076pcs 2076pcs 2076pcs 4878pcs 5610pcs 5610pcs 4560pcs 4560pcs 4560pcs
40HQ 4787pcs 4787pcs 4787pcs 12390pcs 14220pcs 14220pcs 11880pcs 11880pcs 11880pcs
