JEL1RC Wall-mounted Removable LED Emergency Light Wholesale

Home / Product / Emergency Light / JEL1RC Wall-mounted Removable LED Emergency Light
Emergency Light
Virtual showroom
  • JEL1RC Wall-mounted Removable LED Emergency Light
  • JEL1RC Wall-mounted Removable LED Emergency Light
  • JEL1RC Wall-mounted Removable LED Emergency Light
Emergency Light

JEL1RC Wall-mounted Removable LED Emergency Light

Features:
*Injection-molded thermoplastic ABS housing,UL 94V-0 flame rating
*Innovative,easy installation in minutes
*Letters 6" height with 3/4" stroke,RED / GREEN two colors letters
*Single or double face
*Removable directional indicators
*Universal J-box mounting pattern
*120V/277VAC dual voltage operation
*2x8pcs ultra bright 2835 SMT LED lamp heads for emergency mode
*Built -in 3.6V 1200mAh Ni-MH battery for minimum 90 minutes emergency operation
*Maximum 24 hours for full recharge time
*Test switch and charge indicator
*0℃ to 40℃ indoor damp location listed.

Usage ：For house, building, warehouse, emergency,safety, security, monitoring

Certification ：UL

PDF download
Contact us

Scene Application

Description

JEL1RC is an efficient and safe exit sign and emergency light combination, providing an economical and practical solution to meet the needs of different building environments. This two-in-one design allows users to save costs while ensuring functionality. The product uses durable NiMH batteries, which have the advantages of long-term use and low maintenance costs, suitable for long-term efficient operation.
The exit light panel has a simple design and is equipped with a removable left/right arrow, which can be adjusted according to actual needs to guide the emergency evacuation path. The sign is available in single or double-sided options to adapt to different installation requirements and ensure wide visibility in emergency situations. In addition, the product also includes red and green templates to meet the regulatory requirements of different regions, further enhancing its applicability in various environments. JEL1RC supports 120V and 277V AC operation to adapt to different voltage requirements. It is UL certified and complies with relevant emergency codes such as NFPA 101, OSHA and UL 924, ensuring that it provides reliable lighting and guidance in emergency situations.

Technical Details

Part Number

JLEC2BCW

Item Weight

4.4 lbs   /   2 kgs

Package Dimensions

19.3 x 8.27 x 4.72 inches

49 x 21 x 12 cm

Color

‎Sign color

Material

Thermoplastic

Voltage

120/277 Volts

Battery

3.6V 1200mAh Ni-MH

Wattage

3.5 watts

Type of Bulb

‎LED

Mounting Type

‎Wall Mounted

Certifications

UL listed

Weather Ratings

Listed for damp location

Carton Weight

28.44 lbs   /   12.9 kgs

Carton Size

19.69 x 17.32 x 15.16 inches / 6pcs

50 x 44 x 38.5 cm / 6pcs

*ILLUMINATION - Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution. The LED Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
*MULTI-ANGLE LIGHTING - Each side of the emergency light has bright adjustable floodlights on the sign for maximum visibility. 360° ratation, the flexibility of the light direction allows you to point the lights at almost a 90 degree angle.
*EMERGENCY POWER BATTERY BACKUP- Emergency light built-in 3.6V 1200mAh Ni-MH backup battery, upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.
*EASY INSTALLATION IN MINUTES - Can be wall or ceiling mounted, universal J-box mounting pattern. Test switch and status indicator let you know the emergency lights has power and the battery is working.
*1~3 Years limited warranty for our products. If not long enough, warranty term can be customized.

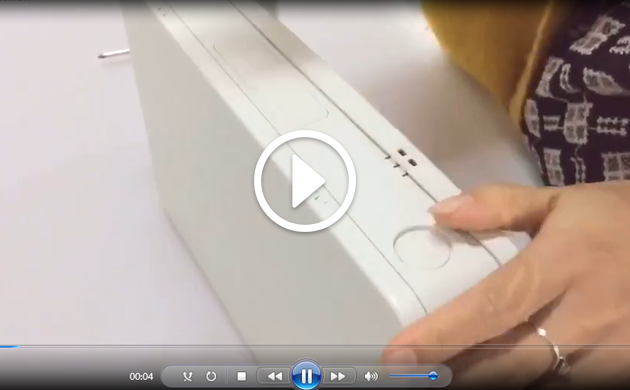

Installation video

  • 1280ba18a3e17605450b37a2c28f24a0_1

Show details

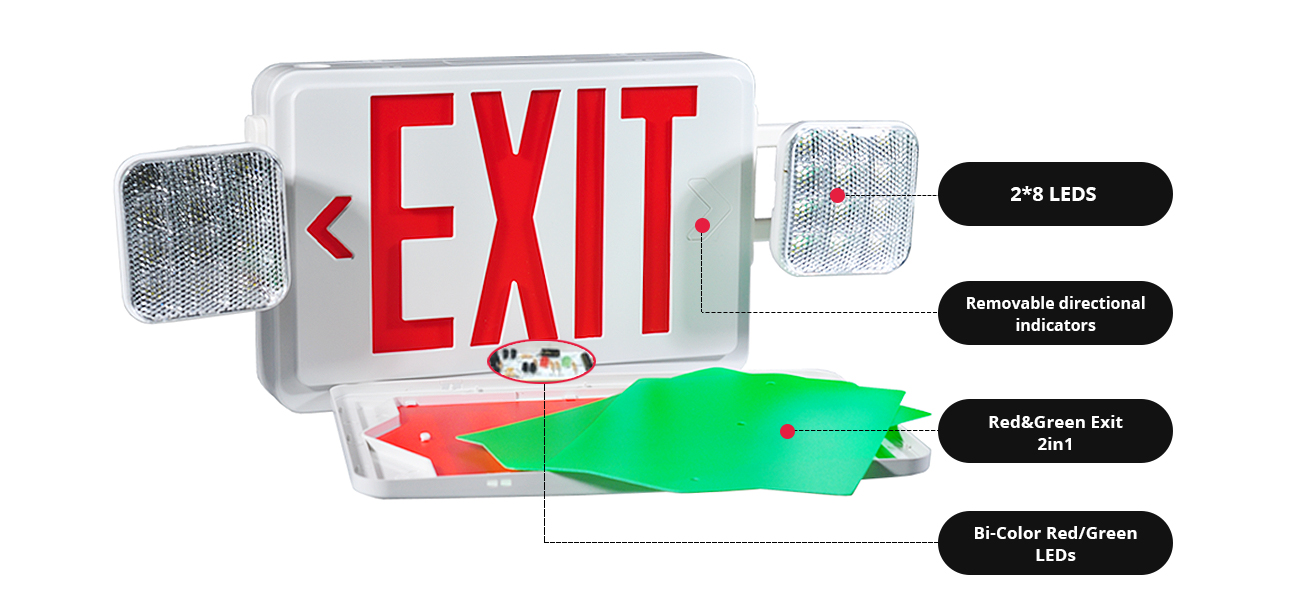

2*8 LEDS Removable directional indicators Red&Green Exit 2in1 Bi-Color Red/Green LEDs

Customized Solution

Need Design?
...No Problem!		 FEITUO Lighting has the ideal solution for custom emergency light. lf we do not have it already, our engineers and technicians will work with you to develop a new one. lf you have any needs for your new product or with to make further improvements, we are-here to offer our support.



At NINGBO FEITUO ELECTRIC APPLIANCE CO., LTD., we understand the importance of tailored solutions and exceptional service. That's why we proudly offer comprehensive OEM and ODM services, ensuring that our products seamlessly integrate into your brand and fulfill your specific specifications. Our product range includes, but is not limited to Emergency Lights, Emergency Exit Signs, Emergency Bulkheads, Emergency Twin Spotlights, Emergency Downlights,and Emergency Battery Backups.Whether you need a customized design, unique features, or branding elements, our dedicated team is here to bring your vision to life.

Applications

  • Hospital
  • Hotel
  • Mall
  • Outdoor
  • Parking lot
  • Restaurant
  • Office building
  • Station
  • Supermarket

Product comparison

PRICTURE









MODEL NO

JLEC2RW

JLEC2RWRC

JLEC2GW

JLEC2GWRC

JLEC2BCW

SIZE

409*111*202mm
16.1"*4.37"*7.95"

409*111*202mm
16.1"*4.37"*7.95"

409*111*202mm
16.1"*4.37"*7.95"

409*111*202mm
16.1"*4.37"*7.95"

409*111*202mm
16.1"*4.37"*7.95"

LETTER
SIZE

6"

6"

6"

6"

6"

LETTER COLOR

Red

Red

Green

Green

Red / Green

RATED
VOLTAGE

120/277V

120/277V

120/277V

120/277V

120/277V

INPUT
CURRENT

0.07/0.05A

0.07/0.05A

0.07/0.05A

0.07/0.05A

0.031/0.016A

INPUT WATT

4.2W

4.2W

4.2W

4.2W

3.5W

LED TYPE

(12)Red LEDs+2*12pcs 2835 SMT LED lamp

(12)Red LEDs+2*12pcs 2835 SMT LED lamp+2W LED lamps

(8)Green LEDs+2*12pcs 2835 SMT LED lamp

(8)Green LEDs+2*12pcs 2835 SMT LED lamp+2W LED lamps

(9) Red LEDs/(6) Green LEDs +2*8pcs lamp heads

REMOTE CAPABILITYR

/

2W remote lamps

/

2W remote lamps

/

BATTERY

Ni-cd
9.6V 600mAh

Ni-cd
9.6V 1000mAh

Ni-cd
9.6V 600mAh

Ni-cd
9.6V 1000mAh

NI-MH
3.6V, 1200mAh

OUTPUT Lumens

≥220

≥220

≥220

≥220

≥300

CHARGING TIME

24 Hours

24 Hours

24 Hours

24 Hours

24 Hours

EMERGENCY RUN TIME

120 Mins

120 Mins

120 Mins

120 Mins

120 Mins

INNER BOX SIZE

49*21*12cm

49*21*12cm

49*21*12cm

49*21*12cm

49*21*12cm

20GP

2076pcs

2076pcs

5140pcs

5140pcs

5140pcs

40HQ

4787pcs

4787pcs

13050pcs

13050pcs

13050pcs

FAQ

  • Are you the factory?

    A: Yes, we are the factory. Our facility in Ningbo has over 400 dedicated staff and spans more than 70,000 square meters. Additionally, we have established a production base in Haiphong, Vietnam, covering 33,000 square meters. Our strategic locations ensure convenient export to any country in the world. We warmly welcome you to visit our factories!

  • What's your main product line?

    A: FEITUO specializes in emergency lighting solutions. Our main product lines include emergency lighting, exit signs, exit sign combos, emergency drivers, and ballasts, among others.

  • Which certificates do you have and what are your main markets?

    A: We hold various certifications, including UL, CUL, CE, RoHS, FCC, DOE, CEC, and ISO9001. Our main markets are North America, South America, Europe, the Middle East, and Asia.

  • Can you provide samples?

    A: Yes, we accept sample orders for quality testing, offering 1-2 pieces per model. Samples are typically ready within 1-7 working days.
    Due to our products containing batteries, major courier companies like DHL, FedEx, and UPS usually cannot ship them by air. We arrange delivery through courier agents who accept shipments with Freight Prepaid in China. Please note that company courier account numbers cannot be used for these samples. Delivery usually takes 3-7 days, with both air and sea shipping options available.

  • What is the MOQ?

    A: Our MOQ ranges from 200 to 5000 pieces per model, depending on the specific product. You are welcome to use your own logo, your own packing design, and customize the voltage and plug type to suit your specific requirements.

    If your order quantity is on the lower end, there may be some additional costs involved. This is due to the need for reconfiguring our production line and the associated labor costs. These factors contribute to a slightly higher unit price for smaller orders. We appreciate your understanding in this matter.
